Carb knowledge base

[L4UK0]

Sem ravno pripravljal gradiva o fergazerjih za @l3v4rt, pa si rekel...vse tole bi bilo nekam za objavit, morda pa še komu pride prav.

PDF gradiva:
How to build & power tune Weber & Dellorto: click
Weber Carburettors - A Guide to Tuning: click
Weber DCOE Tuning White Paper - Sidedraft central: click
OER racing carburetors manual: click
OER racing carburetors catalog: click
SK racing carburetors manual: click

Slikovna gradiva:

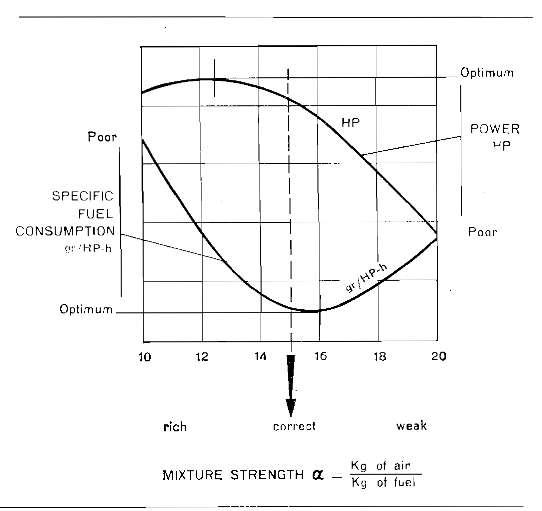

Graf AFR vs poraba vs power:

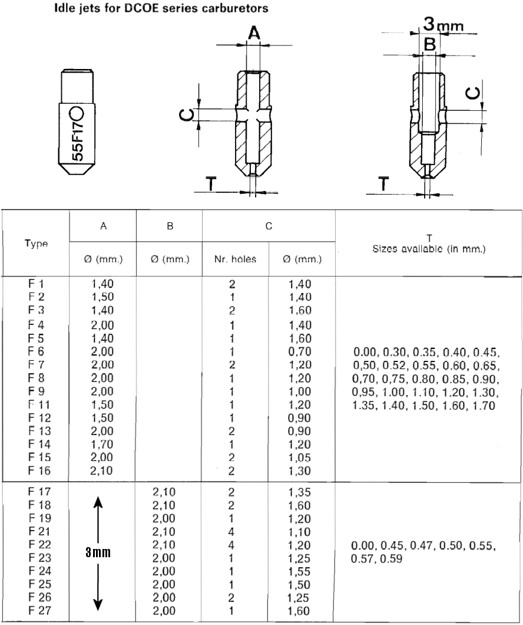

DCOE idle jets:

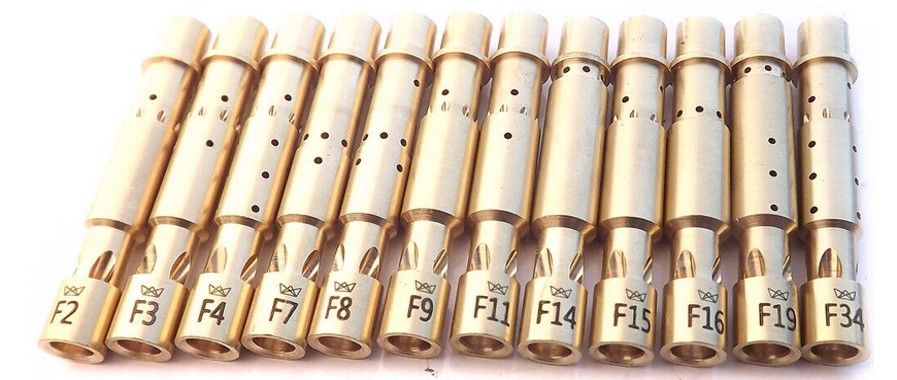

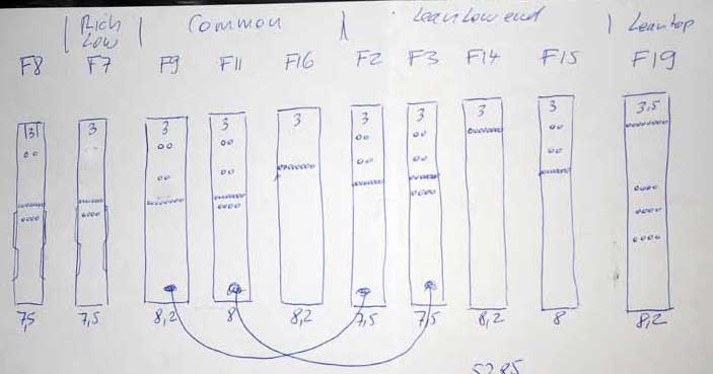

DCOE emulsion tubes:

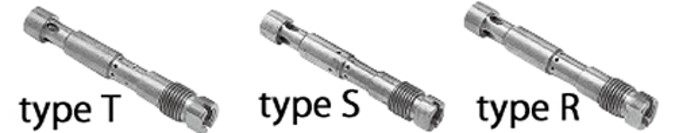

OER emulsion tubes:

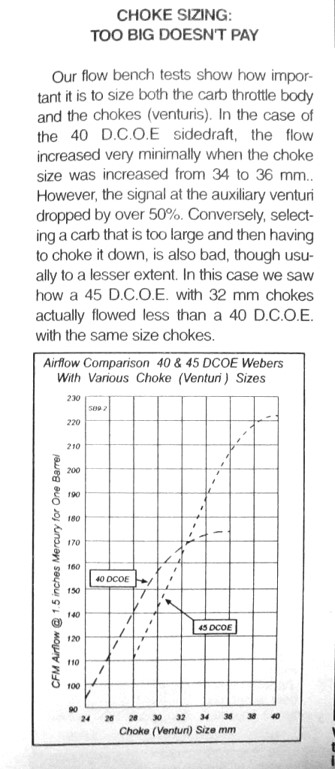

DCOE 40 vs 45 flow / choke size:

DCOE 40 booster signal vs choke size:

DCOE 45 booster signal vs choke size:
